Exercise 2: Create Tree Map Using SQL and PostGIS

Did I just have you go through all of exercise one when the smae thing can be done way easier if you just ditch the geopackage/geodatabase and instead use a PostGIS database? Yes, oops.

For this section I used QGIS 3.28.15, but things should be similar in other versions.

Let’s add a new database connection, create a new layer using a single query, then apply some saved styles.

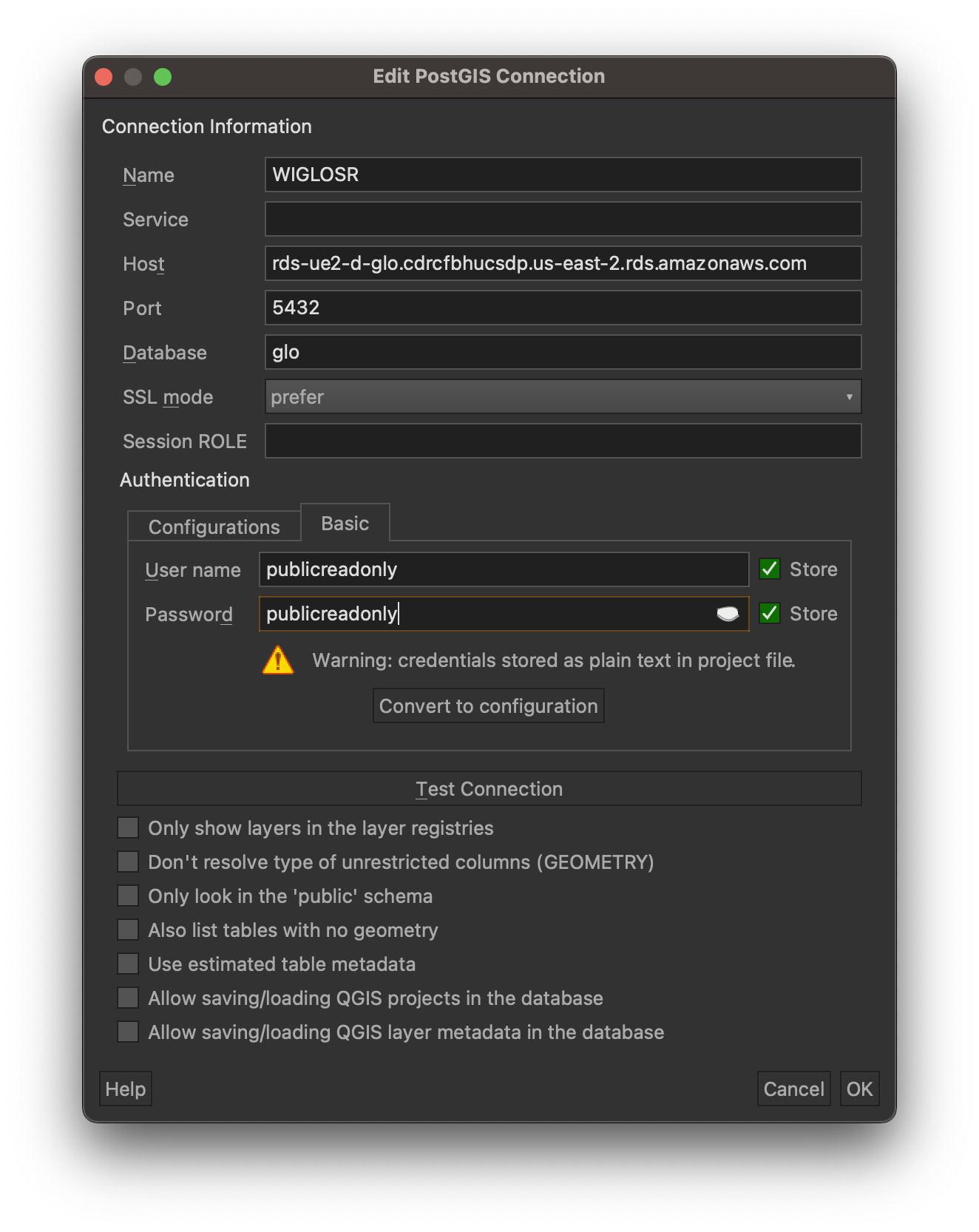

Add New Database Connection

  1. In the top menu go to Layer > Data Source Manager > PostgreSQL
  2. Under Connection click New
    • Use the following inputs:
      Name
      WIGLOSR
      Host
      rds-ue2-d-glo.cdrcfbhucsdp.us-east-2.rds.amazonaws.com
      Database
      glo
    • Under Authentication click the Basic tab and use the following:
      User name
      publicreadonly
      Password
      publicreadonly
    • Select Store for both the username and password.
    • Click OK to finish and add the connection
    • Click OK if it warns you about saving passwords
  3. Click Close to exit the Data Source Manager window

You can now find your newly added database connection in the Browser pane under PostGIS.

Add Townships

Starting out with something simple and familiar:

  1. Drag and drop the townships layer from the PostGIS connection
  2. Right-click on the townships layer and select Filter.
    • For the expression enter "dtr"=42308
    • Click OK
  3. Right-click on the townships layer and select Zoom to layer

Add Witness Trees

Now for something new. You can add layers from the database by dragging and dropping, but let’s look at adding based on a query.

  1. In the top menu go to Database > DB Manager.
  2. Expand PostGIS, then expand your database.
  3. With your database selected, you can now click on the SQL Window button that looks like a page with a wrench on it (or go to Database > SQL Window). In the query section add the following:
     WITH variables (scale) AS (
     values(10)
 ),
 aoi AS (
     SELECT 0 AS id, ST_Union(geom) AS aoigeom
     FROM sections
     WHERE dir=4 AND twp=23 AND rng=8
 ), trees AS (
     SELECT wt.*,o.ptype,lc.geog AS corner_geog,
         CASE
             WHEN wt.sp IN ('LO','RO','WO','BO') THEN 'Oak'
             WHEN wt.sp IN ('PI','RP','HP','WP','JP') THEN 'Pine'
             WHEN wt.sp IN ('FI','SP','HE','WC','CE','TA') THEN 'Other Coniferous'
             WHEN wt.sp IN ('BA','RE','SU','WB','BI','LI','WA','MA','AS','EL','BU','IR','AH','YB') THEN 'Hardwood'
         END AS sp_class,
         CASE
             WHEN wt.diam<=5                 THEN  4.0
             WHEN wt.diam> 5 AND wt.diam<=10 THEN  7.5
             WHEN wt.diam>10 AND wt.diam<=15 THEN 11.0
             WHEN wt.diam>15 AND wt.diam<=20 THEN 14.5
             WHEN wt.diam>20                 THEN 18.0
         END AS diam_class,
         CASE
             WHEN az IS NULL THEN 45
             WHEN length(az)=1 THEN
                 CASE
                     WHEN az='N' THEN  45
                     WHEN az='E' THEN 135
                     WHEN az='S' THEN 225
                     WHEN az='W' THEN 315
                 END
             WHEN length(az)=2 THEN
                 CASE
                     WHEN az='NE' THEN  45
                     WHEN az='SE' THEN 135
                     WHEN az='SW' THEN 225
                     WHEN az='NW' THEN 315
                 END
             ELSE
                 CASE
                     WHEN left(az, 1)='N' THEN
                         CASE
                             WHEN right(az, 1)='W' THEN 315
                             WHEN right(az, 1)='E' THEN  45
                         END
                     WHEN left(az, 1)='S' THEN
                         CASE
                             WHEN right(az, 1)='W' THEN 225
                             WHEN right(az, 1)='E' THEN 135
                         END
                 END
         END AS display_az
     FROM witness_trees AS wt
     JOIN aoi ON ST_Within(wt.geom,aoi.aoigeom)
     LEFT JOIN observations AS o ON o.dtrsco=wt.dtrsco
     LEFT JOIN landnet_corners AS lc ON wt.dtrsco/100=lc.dtrsc
     WHERE o.ptype='P'
 )
 SELECT *, ST_Buffer(ST_Project(corner_geog, diam_class*sqrt(2)*scale, radians(display_az)),diam_class*scale) AS display_geog
 FROM trees, variables

    Optional

    • Change the breakpoints in the diam_class block if you would like.
    • If you change the values after the THEN in that block, it will change the size of the symbols relative to each other.
    • If you change the scale variable at the top, it will make all the symbols larger or smaller at a give scale.
  4. Click Execute to run the query, you will see the results in a table below after it completes.
  5. Check Load as new layer
  6. Check Column(s) with unique values
  7. Select both dtrsco and tree_id
  8. For Geometry column select display_geog.
  9. For Layer name enter something like witness_trees_42308
  10. Click Load and once it completes you can close out of the DB Manager window.

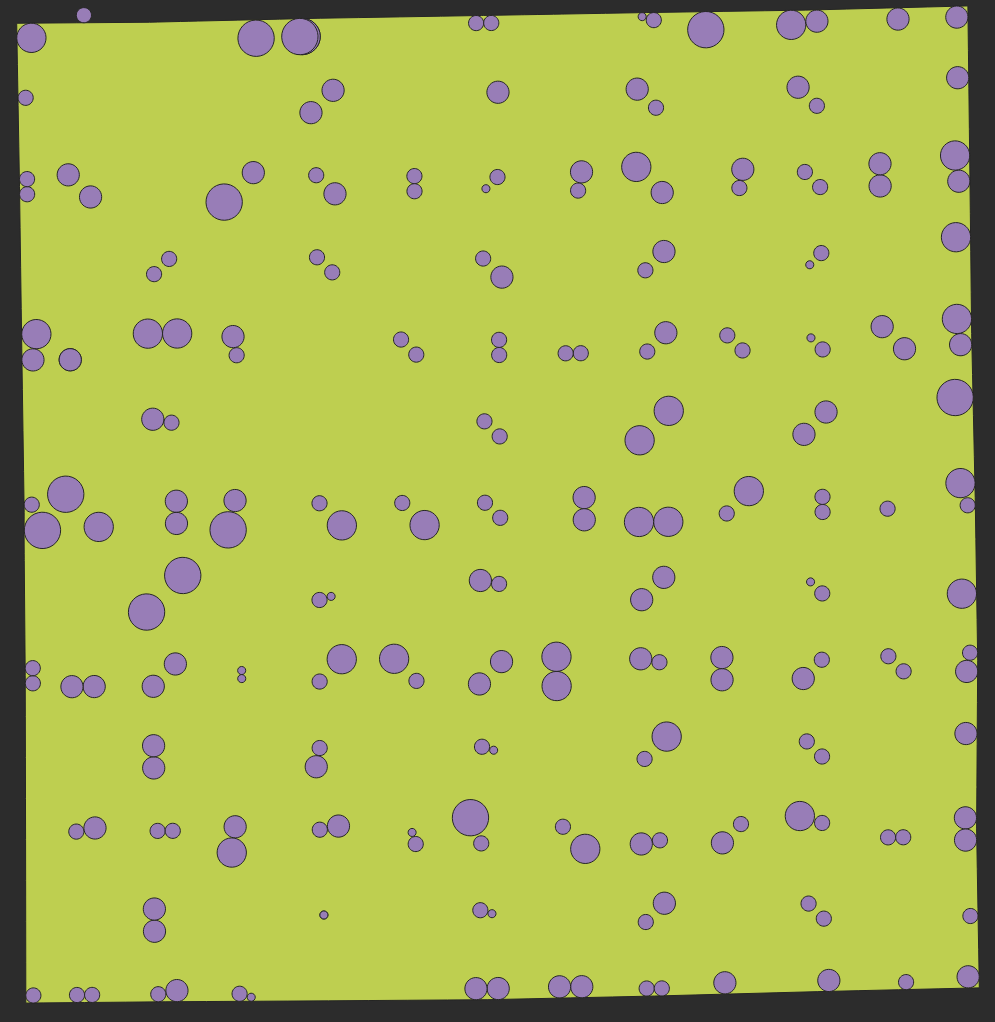

You should now have something that looks like this:

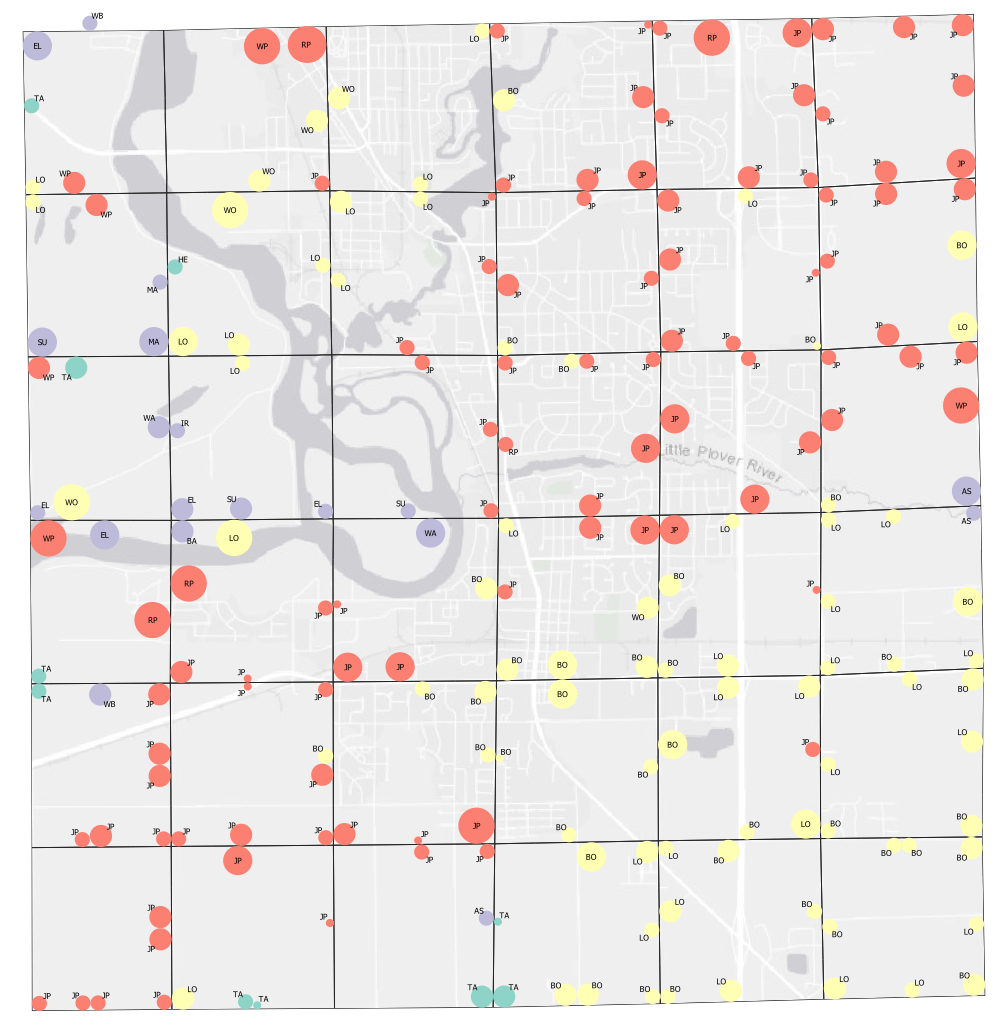

Add Styles

Trees

  1. Download the trees.qml style
  2. Right-click on the witness_trees_42308 layer and choose Properties
  3. Go to Symbology in the left menu
  4. At the bottom left there is a button Style, click it and choose Load Style > Load from File. Choose the file you downloaded in step one (trees.qml)
  5. You should see that the style has been updated after loading from file. Click OK.

AOI Mask

Apply the aoi.qml style to the townships layer to create a mask if you would like. Add in a base layer and sections and you’re good to go.

Conclusion

This was much easier than exercise one, no? So why did we even do exercise one? Because not everyone is familiar with relational databases and SQL. But if you are willing to learn, a whole lot more is possible and often a whole lot easier.
